Strength check: will the bracket hold?
Click the fixed faces and the faces under load, enter force and direction: Isovio calculates stress, deformation and safety of the part and shows the result in colour in 3D.
What it does
- Linear static stress, deformation and safety factor of a part under load.
- Simple input fixture and load by clicking faces, force and direction, own weight if you want, coarse or finer mesh.
- Material from the part Young's modulus, Poisson's ratio and yield strength are shown.

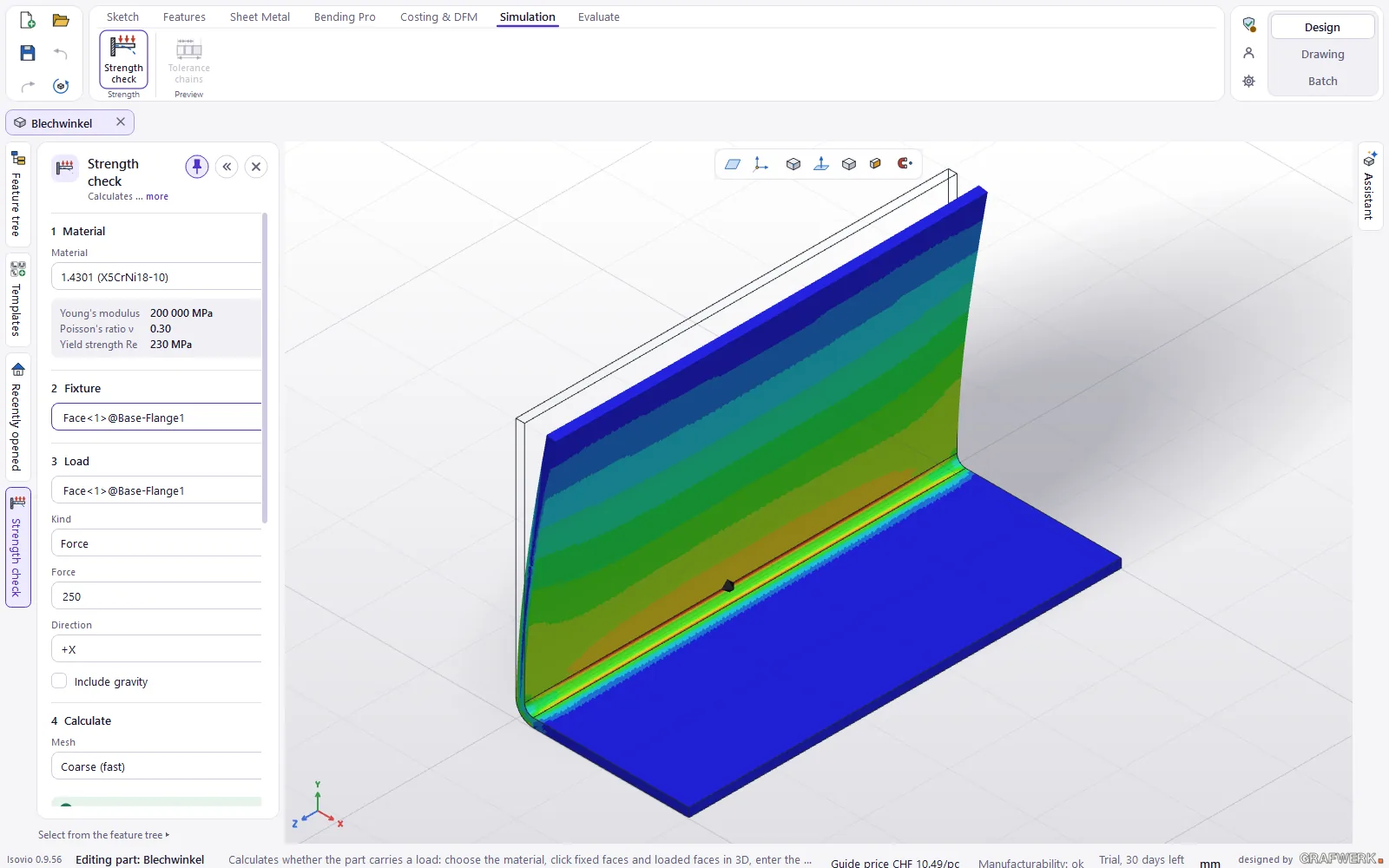

- Result in 3D in colour on the part, the deformed shape beside the original one.
Who it is for
For designers who want to see early whether a bracket, angle or console carries the load, before it is calculated in detail or built.
Good to know
A guide value for design, not a proof of strength. Tolerance chains will follow.
Not for sale yet: already usable in the trial
Simulation «Strength check» is an extension to Isovio Design and cannot be bought yet. In the 30-day Isovio trial it is usable with every feature; with a Design licence every module can also be tried once for 30 days.
