STEP in. Drawing out. Even hundreds.
For models from another CAD system or from a customer: the automatic mode reads STEP files or whole folders, recognises sheet metal, milled and turned parts and sets up the workshop drawing by itself. You check, save them all as Isovio drawings and finish in the editor whatever needs a look. Part of the Isovio Draw licence.

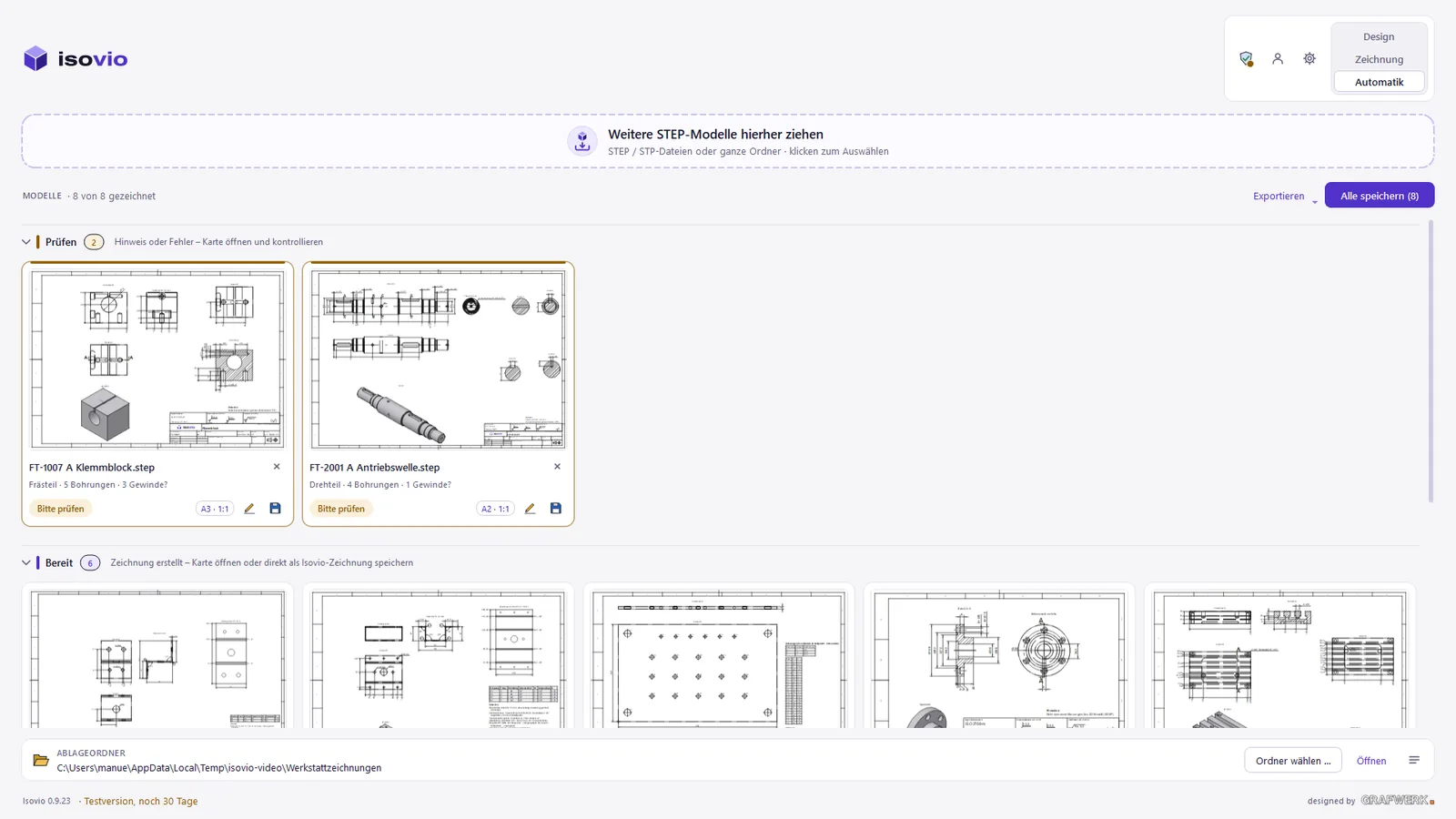

Whole folders at once
Drag in STEP files or folders. Isovio draws in parallel and shows every part as a card, with the status «check» or «ready». «Save all» puts each drawing as an Isovio drawing (.fdw) next to its model. PDF is an export.
- Hints on threads, fits and anything unclear, so nothing slips through
- Assemblies the single parts are drawn one by one
- Title block with your logo, material, drafter and revision

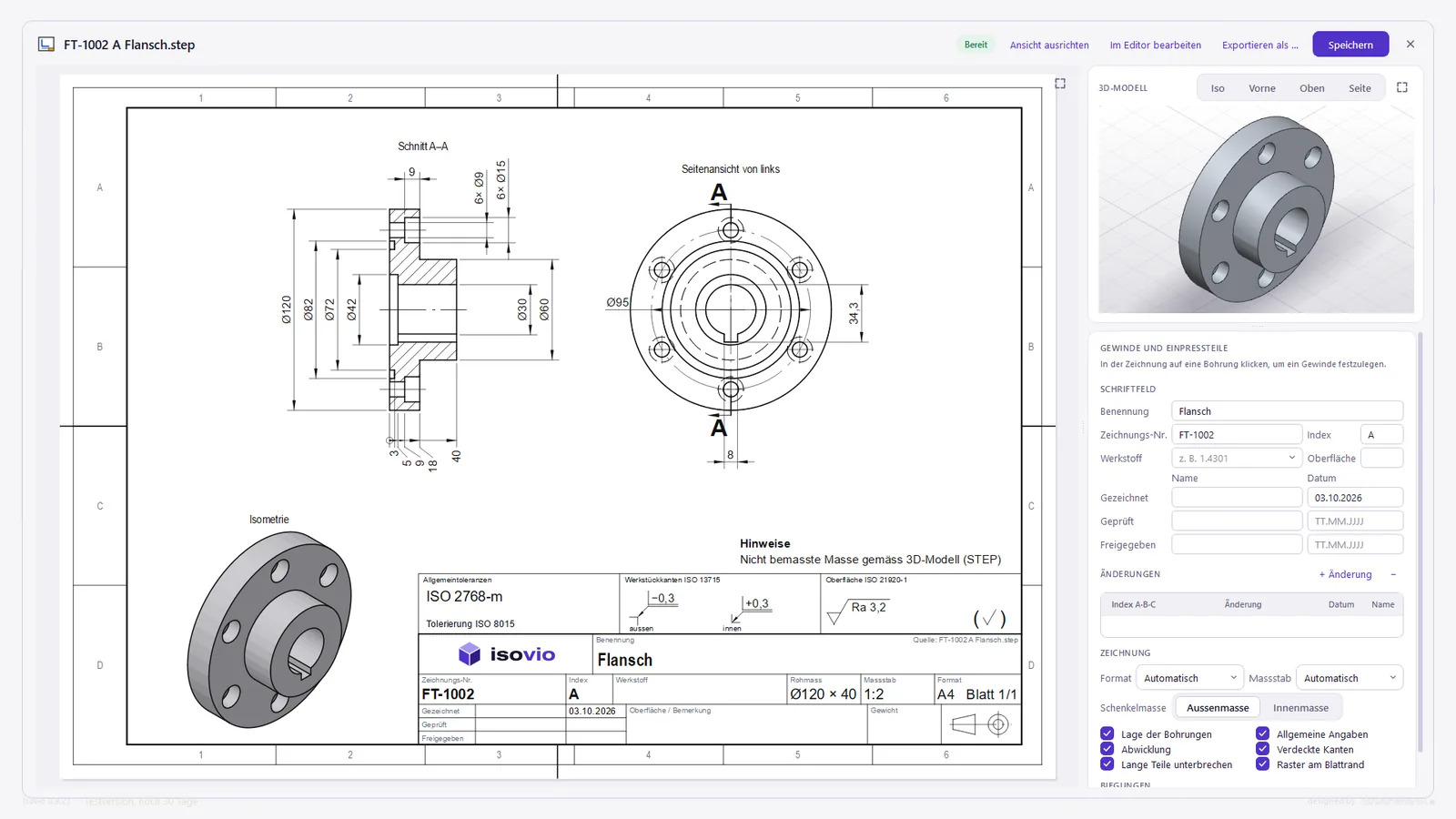

Check every part in detail
A card opens the part with drawing and 3D model. Threads and fits are confirmed with a click. Whatever needs more, you open in the editor.
- 3D view rotate, pan and zoom the model next to the drawing
- On in the editor the same drawing, every tool
Sheet metal parts with everything the press brake needs
Isovio recognises flanges, bends and sheet thickness. The flat pattern is calculated to DIN 6935 with the K-factor from your house table.
- Flange dimensions as outside or inside dimensions to DIN 6935
- Flat pattern with bend lines, direction and blank size
- Bend table with sequence, inside angle, radius and K
- Holes in a flange dimensioned in the flat pattern from the outer edges
Turned parts with sections, undercuts and fits
Shafts are drawn lying down, shoulders dimensioned as a chain, keyways in the cross-section, undercuts to DIN 509.
- Long parts shown as interrupted views (ISO 128-30) instead of scaled down
- Threads recognised and drawn to ISO 6410
- Fits to ISO 286 with a click, with a fit table
Plates with many holes: coordinate table
From twelve holes on, Isovio switches to coordinate dimensioning: equal holes as a group, each with its tag, X and Y in the table.
- Groups A, B, C … for hole, countersink, thread
- Origin lower left, values to ISO 129-1
- Larger sheet so every tag stays readable
Try Isovio on one of your own parts.
Free for 30 days, all three areas including Design, no credit card.
