Costing & DFM: what does it cost, does it work?
While you design, the guide price per piece is shown at the bottom, and Isovio checks the sheet metal part for manufacturability, with a suggestion for every finding.
What it does
- Guide price per piece from material, laser, bend sequence and setup according to your machine profile, with a breakdown and batch size, live in the status bar.

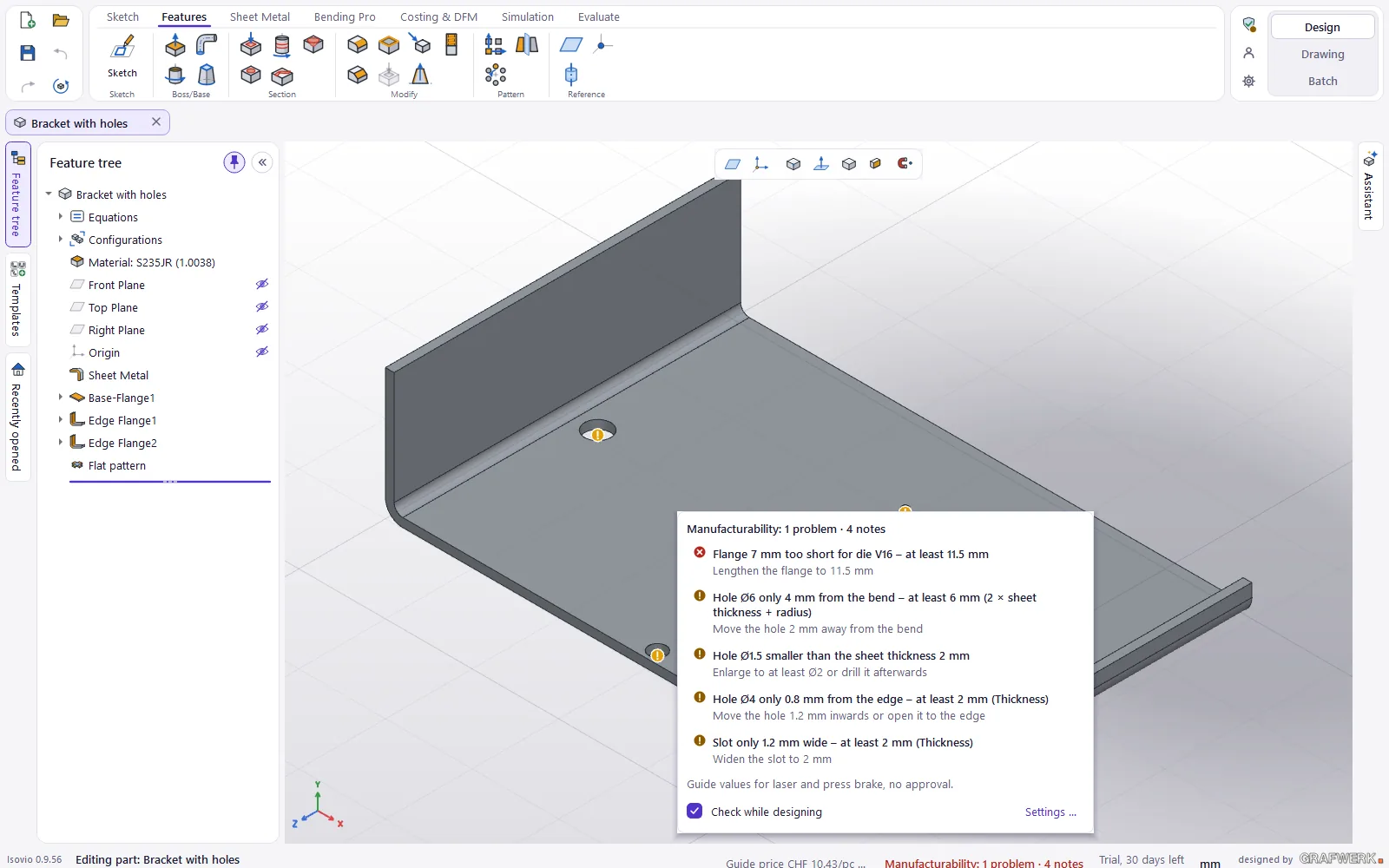

- Manufacturability live hole too close to the bend, flange too short for the die, hole smaller than the sheet thickness or too close to the edge, slot too narrow: marked in 3D, with distance, reason and suggestion.
- Manufacturing check (DFM) also as a command of its own, for a finished part in one click.
- Your rules switch the check while designing on or off, the limits in the settings.
Who it is for
For sheet metal fabricators who need a guide price quickly, and for designers who want to design for manufacturing from the start.
Good to know
Guide values for laser and press brake, no release and no binding quote.
Not for sale yet: already usable in the trial
Costing & DFM is an extension to Isovio Design and cannot be bought yet. In the 30-day Isovio trial it is usable with every feature; with a Design licence every module can also be tried once for 30 days.
All modules for Isovio Design
Bending Pro
Bend simulation & feasibility: automatic bend sequence with pre-bend and tool suggestions, station plan, segmentation per tool, 3D simulation at the press brake with collision display.
Learn more →Assembly costing
Guide price of whole assemblies: material, sawing, drilling, laser, bending, standard parts, surface, transport and assembly.
Learn more →AI assistant
Connect your own AI to Isovio: an agent such as Claude Code or Claude Desktop builds parts in the open Design via MCP. No request limit, you pay for the AI directly with your provider. Experimental.
Learn more →Simulation «Strength check»
Stress, deformation and safety of a part under load, linear static. A guide value for design, not a proof of strength.
Learn more →Welded assemblies
Welds on the 3D assembly to ISO 2553, processes to ISO 4063, weld list and weld symbols in the drawing.
Learn more →Try Isovio on one of your own parts.
Free for 30 days, all three areas including Design, no credit card.
